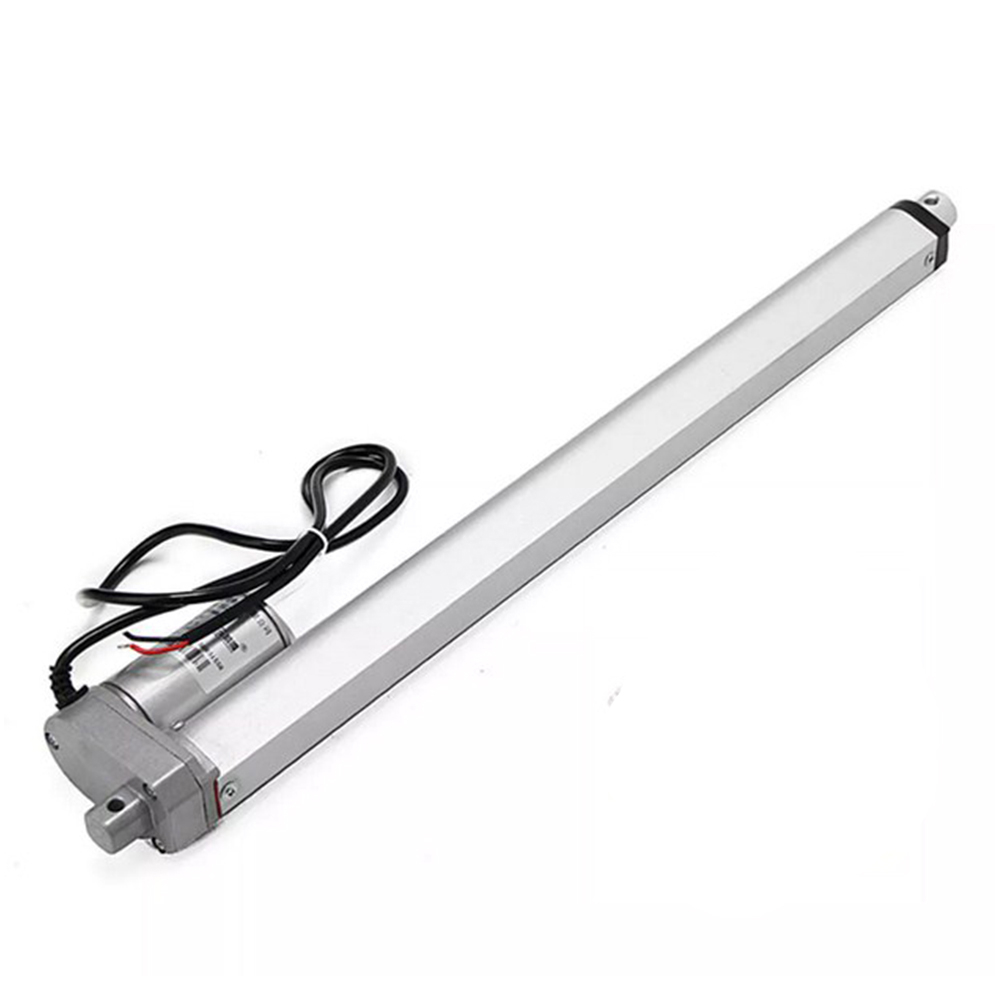

The electric putter is an electric drive that converts the motor's rotational motion into a straight reciprocating motion of the push rod. Can be used in a variety of simple or complex process as the implementation of mechanical use, in order to achieve long-range control, centralized control or automatic control. Main use: electric sofa, electric stand lift rod, industrial electric lift system, camera frame, video machine, wedding system. How it works:After the motor is slowed by the gear, drive a pair of screw nuts. The motor rotation into a linear motion, the use of motor reversal to complete the putter action. Such as through a variety of lever, rocker or connecting rod and other institutions to complete the rotation, shake and other complex movements. Built-in stroke switch,and low noise design,noise level is less than 42dB

Specification:

Model: TGA-12-100-5

Motor type: permanent magnet dc motor drive

Rated voltage :12VDC

Maximum thrust/pull: 1000N

Self-locking force: 200KG

Speed: 7 mm/s

Effective stroke : 500mm

Standard protection level: IP54

Base noise design, noise level below 42dB

Ambient temperature:-26 to 50℃

Applicable machinery: electric car, doors and Window, etc

Weight: 983 g / 34.7 oz(approx.)
